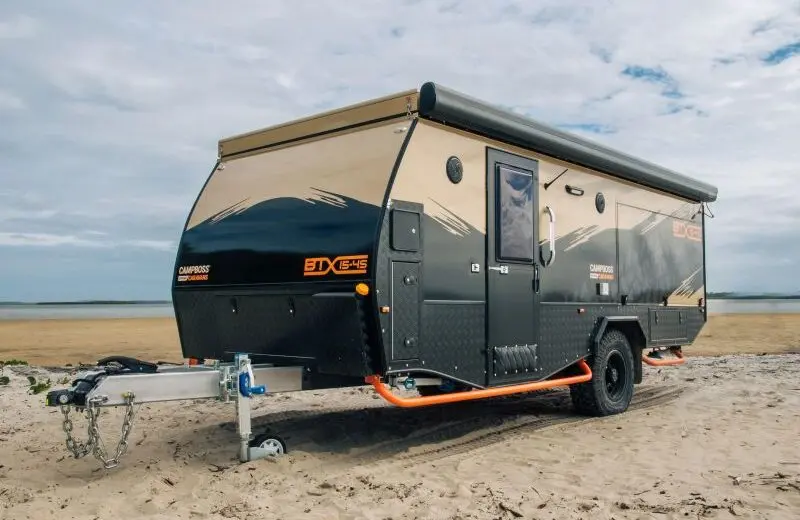

In true CampBoss style the BTX15-4S is designed to go adventuring with Black Bear mud terrain off-road tyres, heavy duty independent suspension with dual shock absorbers, built-in rock sliders, and a break away towing system.
Room for everyone
$69,995FULLY OPTIONED*
Finance from $251pw (7 year term)

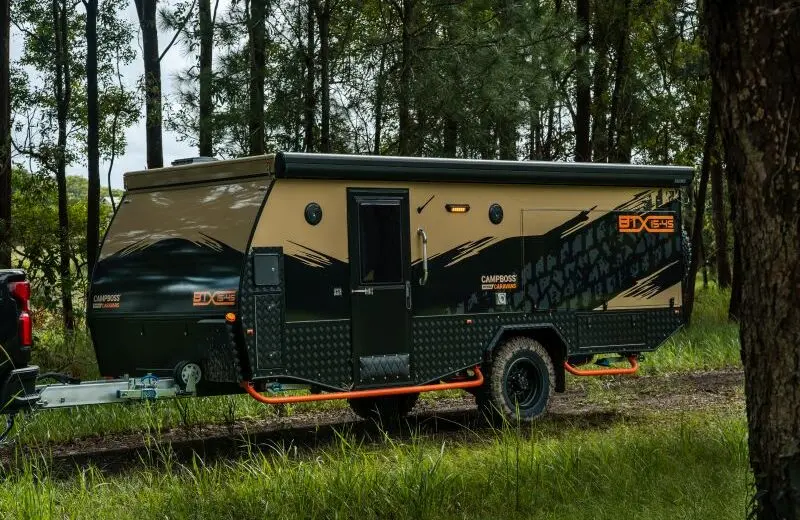

Discover freedom, comfort, and rugged capability with your very own CampBoss BTX15-4S Off-road Caravan.
Your ultimate off-road adventure starts with a slimline 15-foot profile that uses electric actuators to automatically pop the roof, revealing a spacious interior for up to five people.

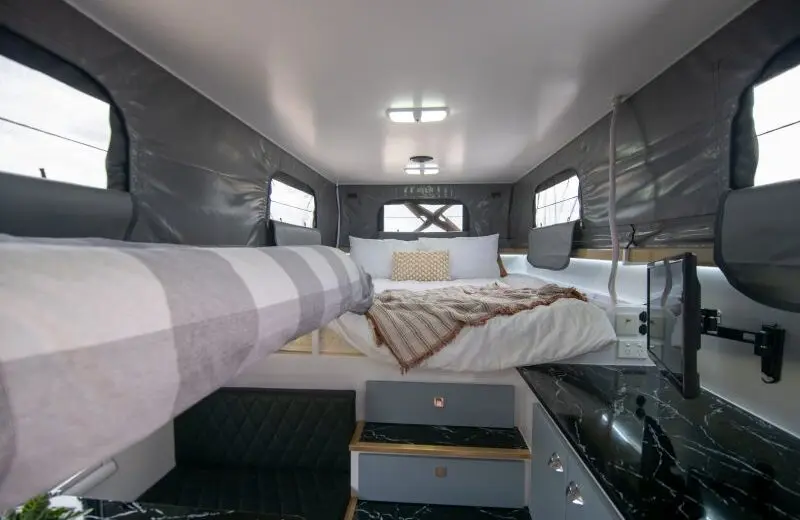

Comfort comes standard in the BTX15-4S with a large queen-size bed, two movable single beds, an external single bed enclosure, an ensuite with shower and toilet, in-floor air-conditioning, and a Dometic dust reduction system.
There’s also a smart TV, four-speaker audio system, built-in reading lights, and a comfy dinette area for two.
*This Fully optioned price includes all the amenities shown.
Sleeps
Up to 5 people
Tare Mass
2,200KG
Specifications
Size (mm)
6,700mm(L) x 2,210mm(W) x 2,300mm(H)
Sleeps
Up to 5 people
Tare Weight
2,400kg
Power
Enerdrive Esystem
ATM
3,000kg
Water
200L
GTM
2,800kg
TBM
220kg
Standard Inclusions
Interior
- Sleeps up to 4 people
- Queen-size bed with inner spring mattress
- Two movable single beds: one above the dinette, and the dinette converts into the other
- Internal LED lights
- Internal strip lighting
- Internal shower
- Interior Thetford toilet
- Tinted slimline windows with insect screens and blinds
- Reflective window sun shades
- Dometec DRS (Dust Reduction System)
- Internal Bushman 130L upright fridge

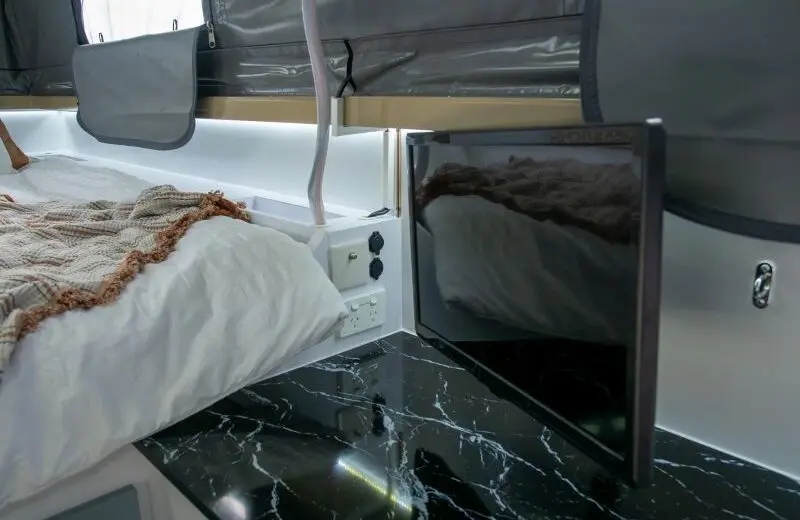

- 12v 24-inch smart TV with mount
- 2-seater dinette with table
- Dometic in-floor air-conditioner
Exterior
- Electric awning 4.5m x 2.4m
- Pop-top roof with automatic electric actuators
- External LED lights

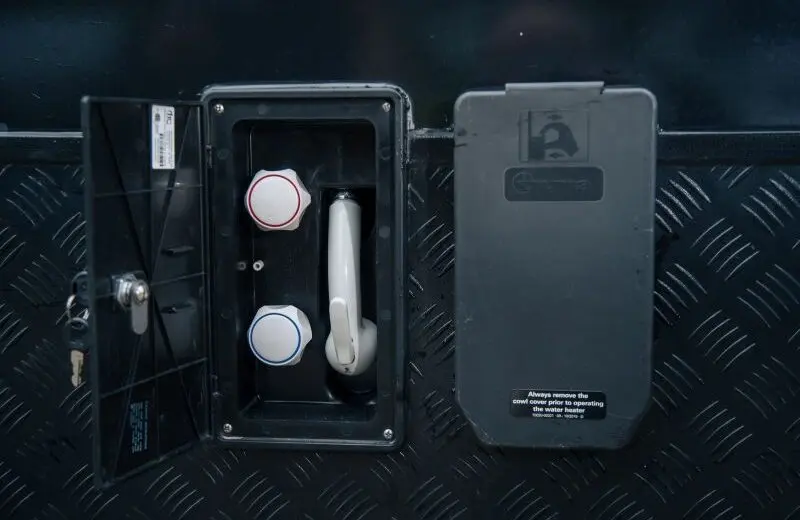

- External shower
- Storage (external access)

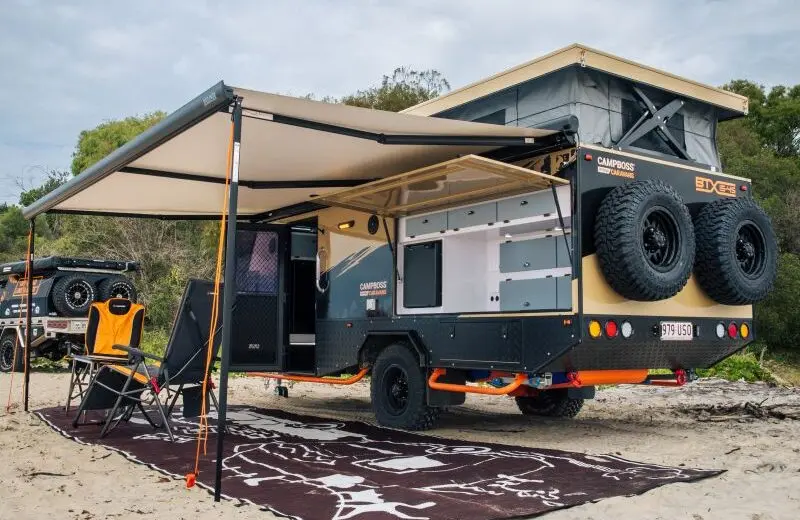

- Outdoor kitchen area with stainless steel 2-burner gas stove, storage space, stainless steel sink, and 65L Bushman upright fridge
Towing
- Tare weight: 2400kg
- ATM: 3000kg
- GTM: 2800kg
- TBM: 220kg
- 7-pin flat plugs
- Galvanised chassis and draw bar: 150mm x 50mm x 4mm
- Underbody deadener for underbody protection
- Cruise Master DO35 hitch
- Safety chains to Australian Standards
- Rock sliders
- 4x Black Bear mud terrain off-road 265/75R 16-inch tyres

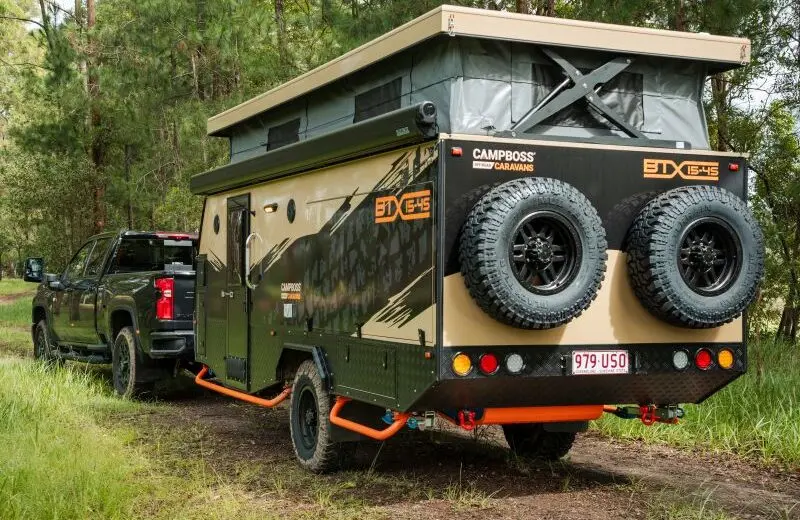

- Swing-down tailgate with 2 spare wheels
- Heavy duty independent suspension with dual shock absorbers
- 12” electric drum brake with hand brake
- Break away towing system
Water
- 2x water tanks 120L + 80L
- 1x grey water tank 80L
- 2x alloy water tank protectors
- 1x alloy grey water tank protector
- 2x water fillers
- Tap on draw bar

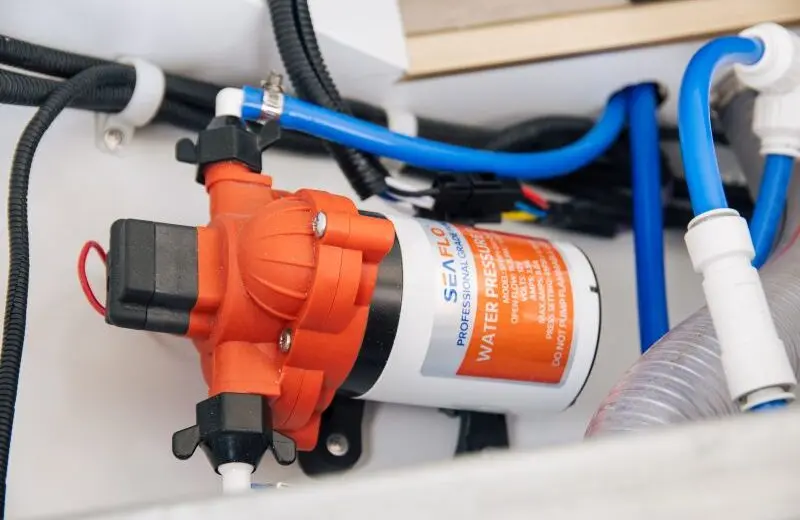

- 12V water pressure pump
- Trauma hot water system
Power
- Enerdrive Esystem
- 1x 240V/40A AC/DC charger
- Enerdrive Esystem 40A DC/DC charger
- Enerdrive Simarine Screen
- Enerdrive 2x B-Tec 200AH/12V Lifepo4 Battery BT Gen2
- Enerdrive 2000W inverter
- 4x solar panels on the roof; 600W in total
Caravan
- Overall width: 2210mm
- Overall length: 6700mm
- Overall height: 2300mm
- Body construction: aluminium with composite aluminium panels

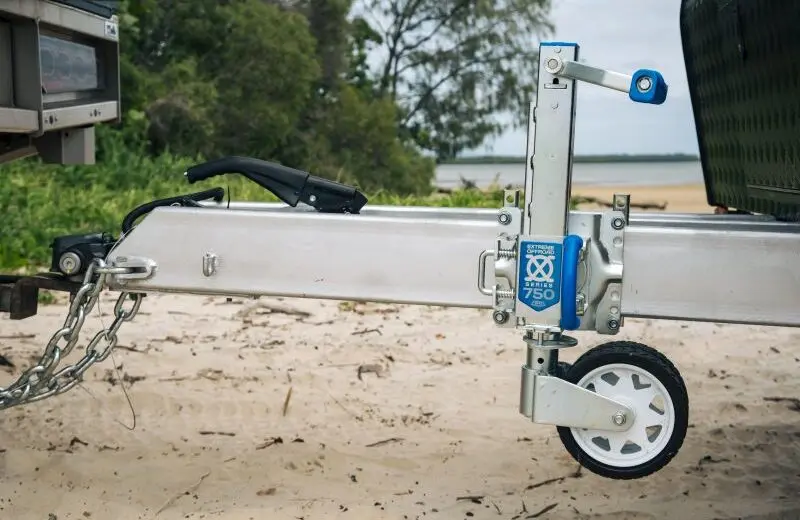

- Arc Jockey Road Extreme Off-road
- 4x stabiliser legs
- 2x 4.5kg gas bottle holder
- 2x standard 20L jerry can holders (powder coated)
- Heavy duty gas struts
- Waterproof and anti-rust locks
- Audio system with 4 speakers

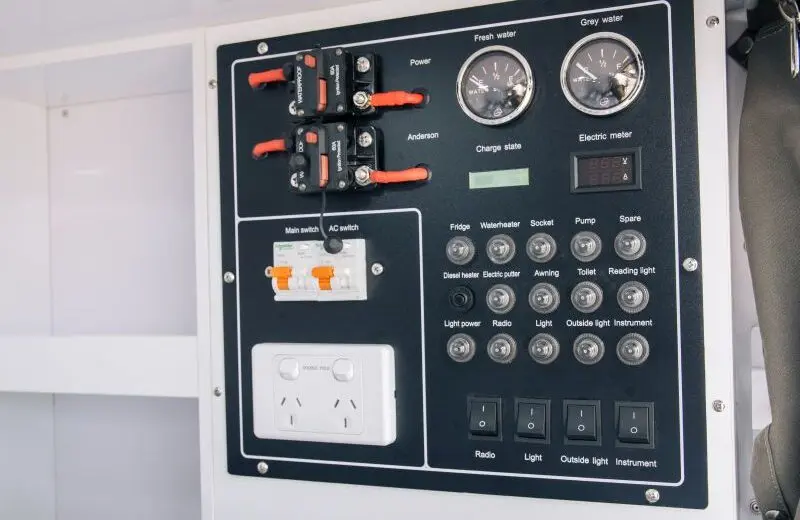

- Control panel with monitors for water and battery
Off-road adventures
Outdoor lifestyle

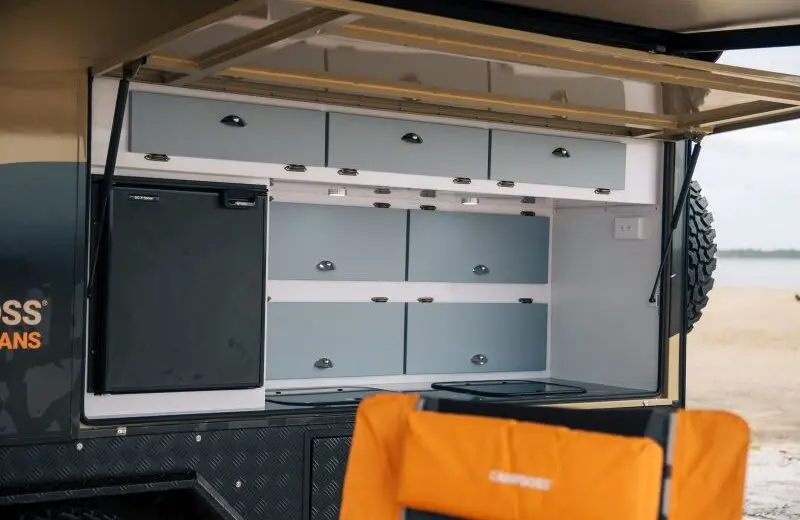

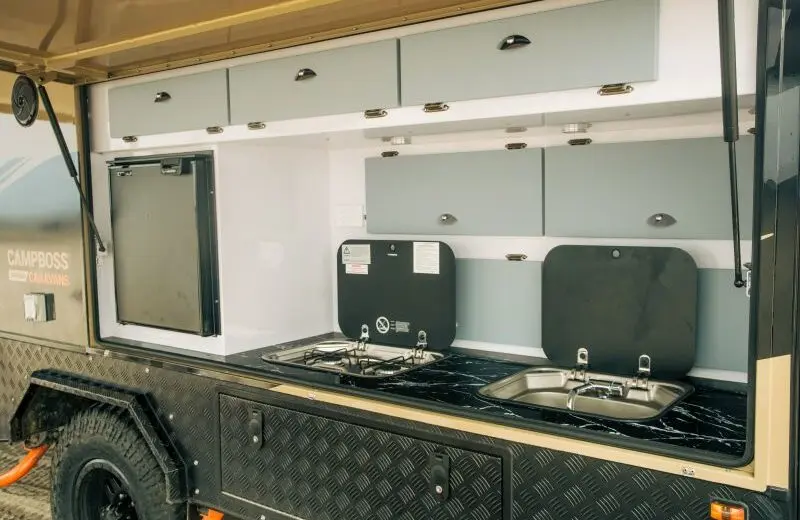

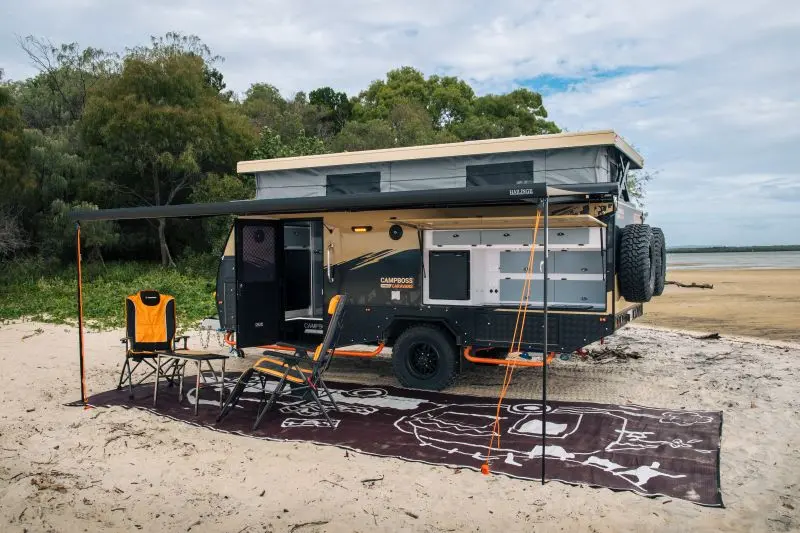

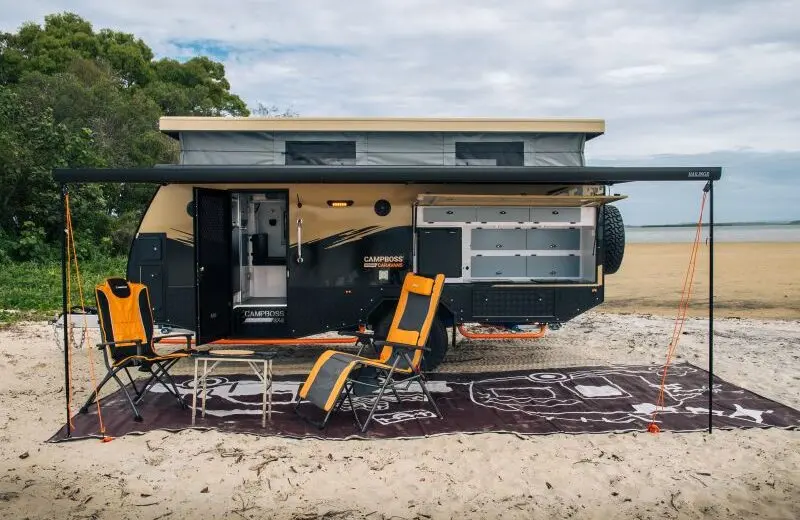

Built for outdoor living, the BTX15-4S has an electric awning that can be fully enclosed with the annex. Cookin’ is a pleasure with the outdoor kitchen area featuring a stainless steel 2-burner gas stove, storage space, a stainless steel sink, and 65L Bushman upright fridge to keep things fresh and cold!
Off-grid power

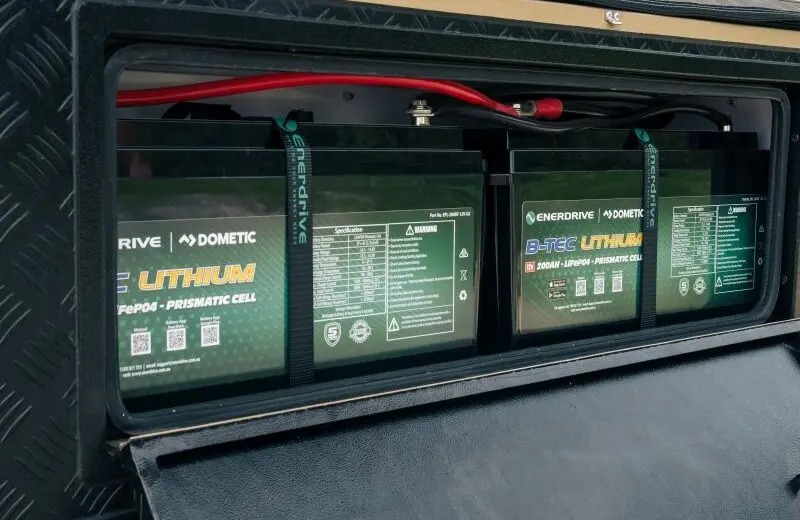

When your adventure takes you off-grid, an Enerdrive Esystem takes care of running everything, connecting the 240V/40A AC/DC charger, the 40A DC/DC charger, two Enerdrive B-Tec 200AH/12V Lifepo4 BT Gen2 batteries, an Enerdrive 2000W inverter, and 600W of solar panels on the roof.
