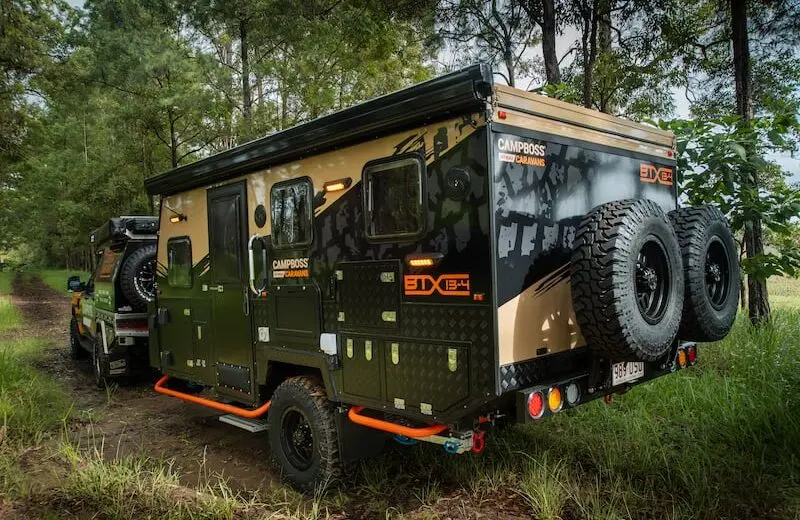

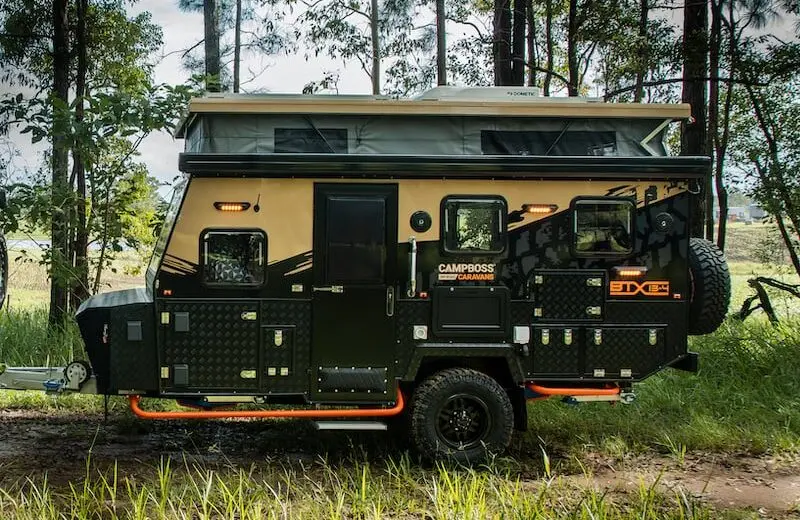

In true CampBoss style the BTX13-4 is designed to go adventuring with mud terrain off-road tyres, heavy duty independent suspension with coils and dual shock absorbers, built-in rock sliders, and a break away towing system.
Room for everyone
$66,995FULLY OPTIONED*
Finance from $240pw (7 year term)
Discover freedom, comfort, and rugged capability with your very own CampBoss BTX13-4 Off-Road Caravan.

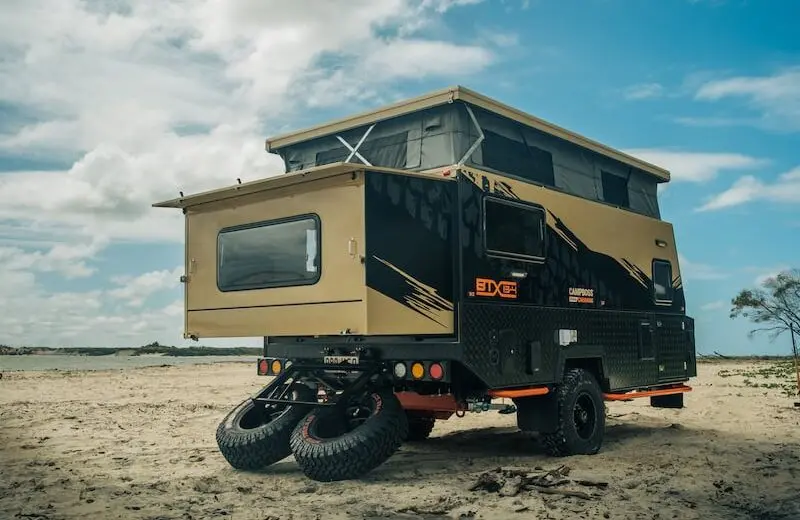

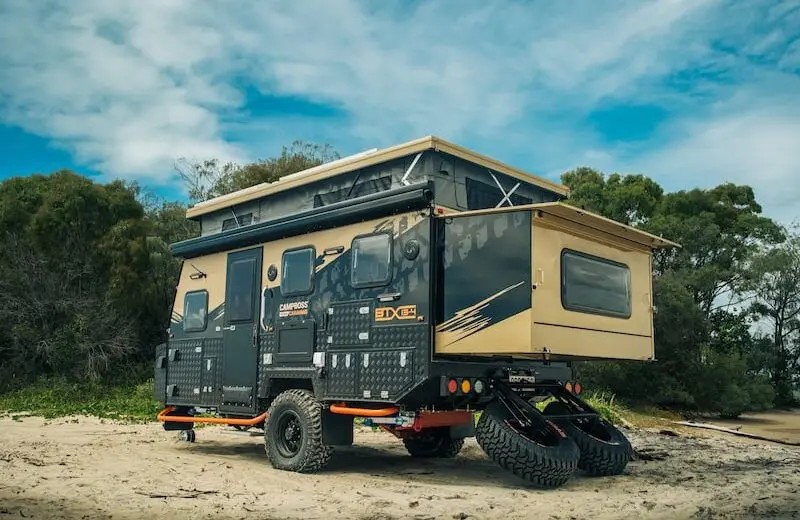

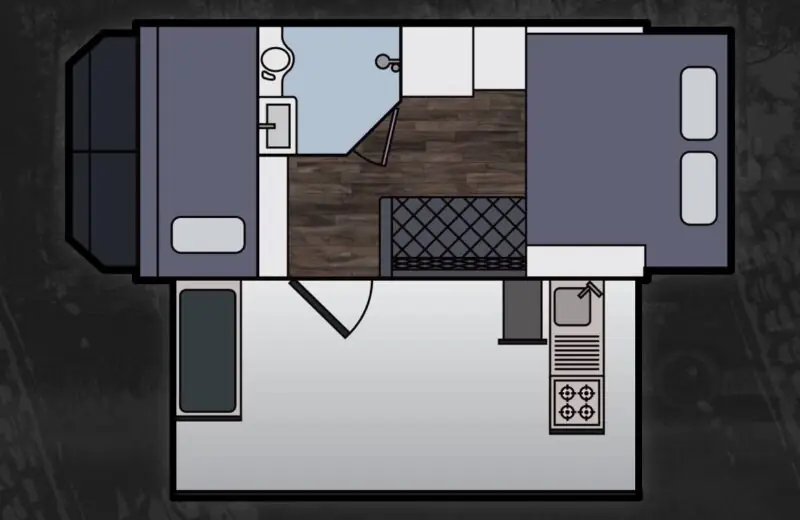

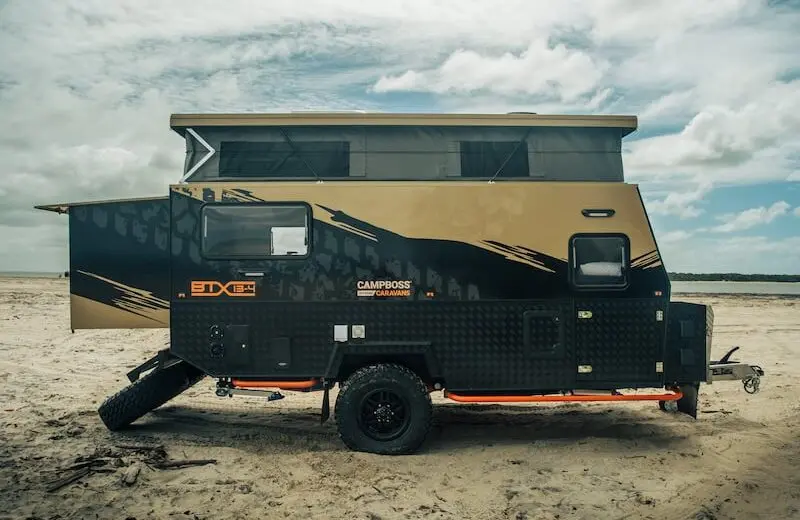

Your ultimate off-road adventure starts with a compact 13-foot profile that expands upwards and outwards to reveal a spacious interior that can sleep up to four people.

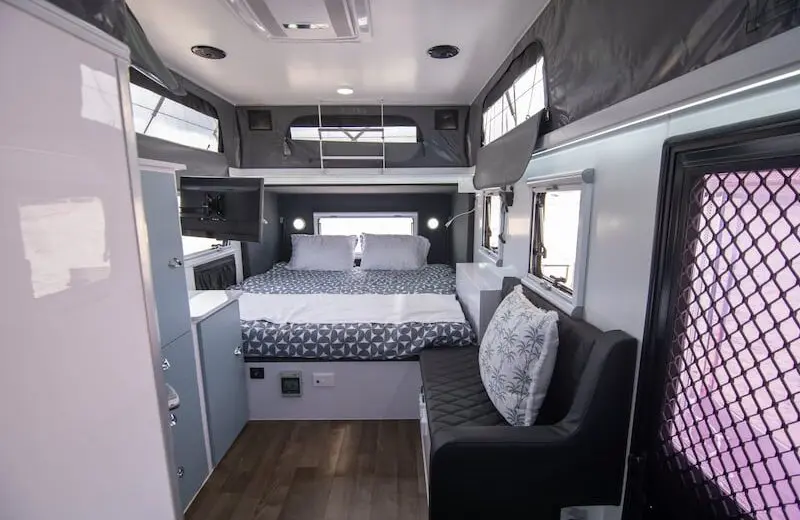

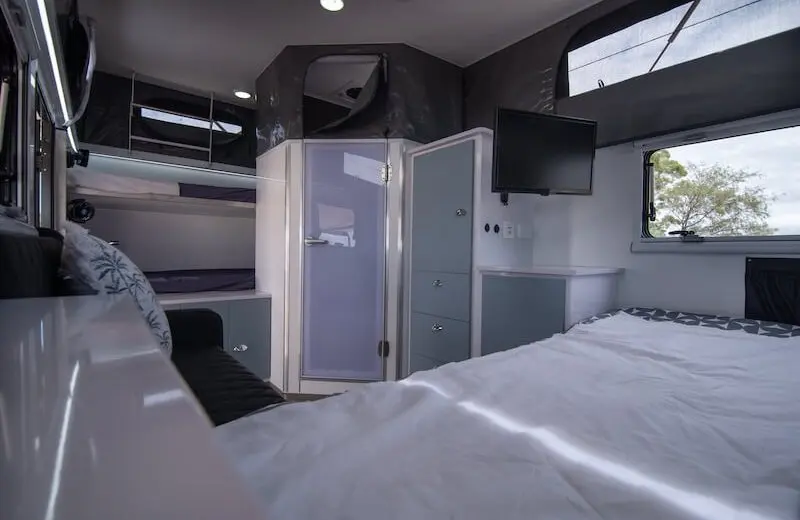

Comfort comes standard in the BTX13-4 with a massive king-size bed, two permanent bunk beds, an ensuite with shower and toilet, myCOOLMAN Roof-top reverse cycle Air-Conditioning, Diesel Heater and a Dometic Dust Reduction System.
There’s also a smart TV, four-speaker Audio System, built-in Reading Lights, and a comfy Lounge to relax on.
*This Fully optioned price includes all the amenities shown.
Sleeps
Up to 4 people
Tare Mass
2,300KG (approx.)
Specifications
Size (mm)
6,000mm(L) x 2,285mm(W) x 2,650mm(H)
Sleeps
Up to 4 people
Tare Weight
2,300kg (approx.)
Power
Enerdrive Esystem
ATM
3,000kg
Water
200L
GTM
2,800kg
TBM
220kg
Standard Inclusions
Interior
- Sleeps up to 4 people
- King-size Bed 2100mm x 1800mm inner spring mattress
- Permanent Bunk beds: 2030mm x 680mm top bunk, 2030mm x 900mm bottom bunk
- Internal LED Lights
- Internal Strip Lighting
- Internal Shower
- Interior Thetford Toilet
- Tinted Slimline Windows with Insect Screens and Blinds
- Reflective Window Sun Shades
- Dometic DRS (Dust Reduction System)
- 12v smart TV with mount
- Double Bunk at front
- 2-seater Lounge
- myCOOLMAN reverse cycle Air-Conditioner
- Diesel Heater
Exterior
- Electric awning 3.9m x 2.4m
- Electric Pop-top Roof
- External LED Lights
- External Hot & Cold Shower
- Slide-out Stainless Steel Kitchen with Sink and 4 burner Gas Stove

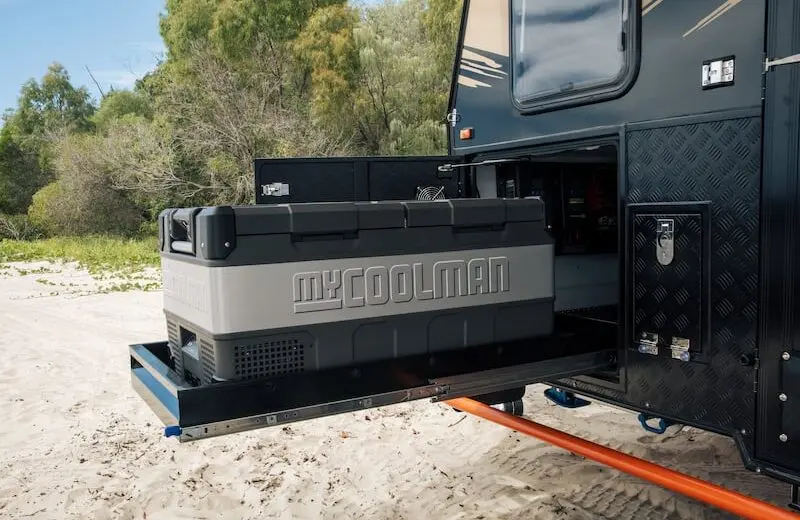

- Separate Sliding Fridge Tray
Towing
- Tare weight: 2300kg (approx.)
- ATM: 3000kg
- GTM: 2800kg
- TBM: 220kg
- 7-pin flat Tow Plug

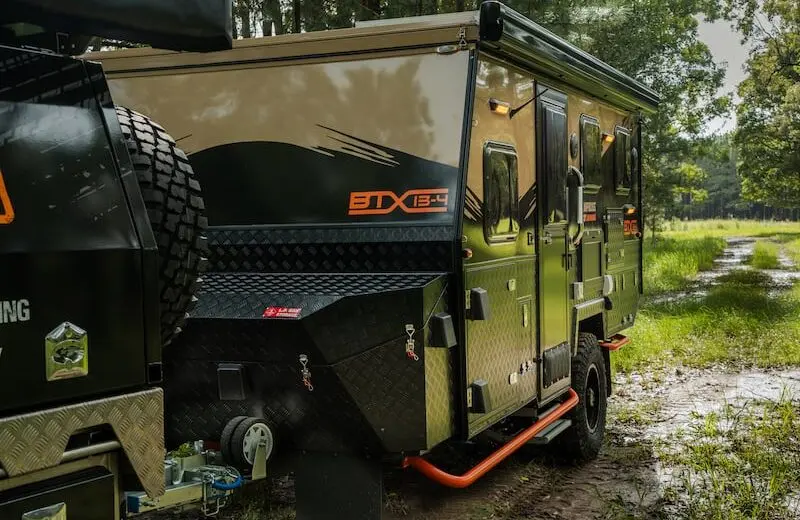

- Galvanised Chassis and Draw Bar: 150mm x 50mm x 4mm
- Underbody Deadener for underbody protection
- Cruise Master DO35 Coupling Hitch & Pin Set
- Safety chains to Australian Standards
- Rock sliders
- 4x mud terrain off-road 265/75 R16-inch tyres

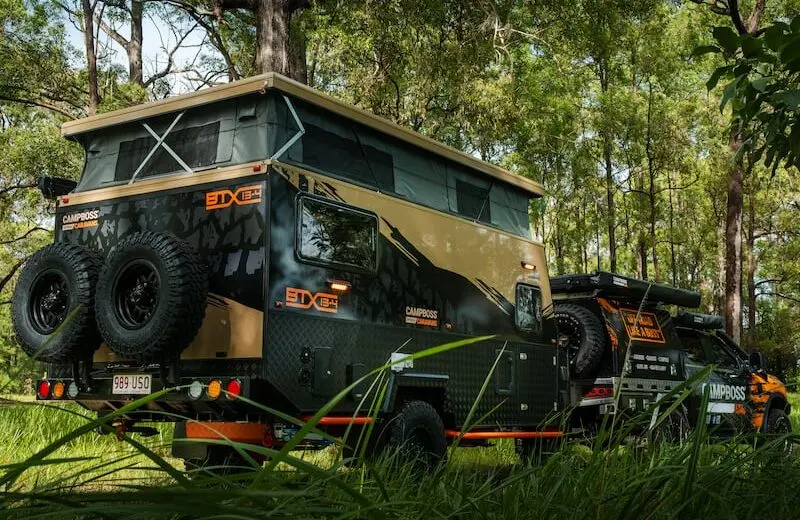

- Swing-down tailgate with 2 spare wheels
- Heavy duty independent suspension with coils and dual shock absorbers
- 12” electric drum brake with hand brake
- Break away towing system
Water
- 2x Water Tanks 120L + 80L
- 1x Grey Water Tank 80L
- 2x Alloy Water Tank Protectors
- 1x Alloy Grey Water Tank Protector
- 1x Water fillers
- Tap on draw bar
- 12V Water pressure pump
- Truma Gas/240V Hot Water System
Power
- Enerdrive Esystem
- 1x 240V/40A AC/DC charger
- Enerdrive Esystem 40A DC/DC Charger
- Enerdrive Simarine Screen
- Enerdrive 2x B-Tec 200AH/12V Lifepo4 Battery BT Gen2
- Enerdrive 2000W Inverter
- 3x Solar Panels on the roof; 450W in total
Caravan
- Overall width: 2285mm
- Overall length: 6000mm
- Overall height: 2650mm
- Body construction: Aluminium with Composite Aluminium Panels
- Arc Jockey Wheel Extreme Off-road
- 4x Stabiliser legs
- 2x 4.5kg Gas Bottle Holder
- Heavy duty Gas Struts
- Waterproof and Anti-Rust locks
- Audio System with 4 Speakers
- Control Panel with Monitors for Water and Battery

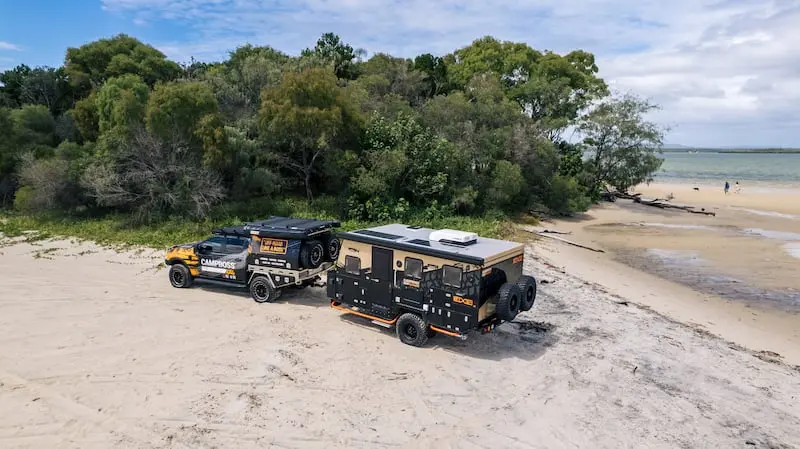

Off-Road adventures
Outdoor lifestyle

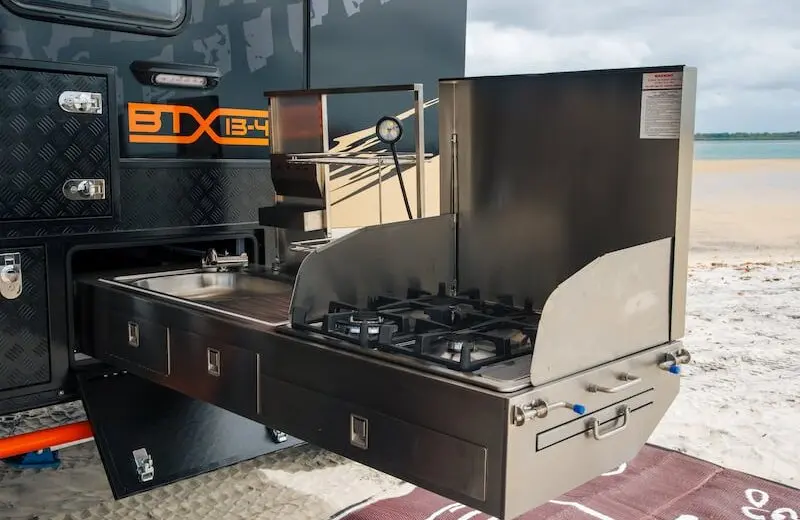

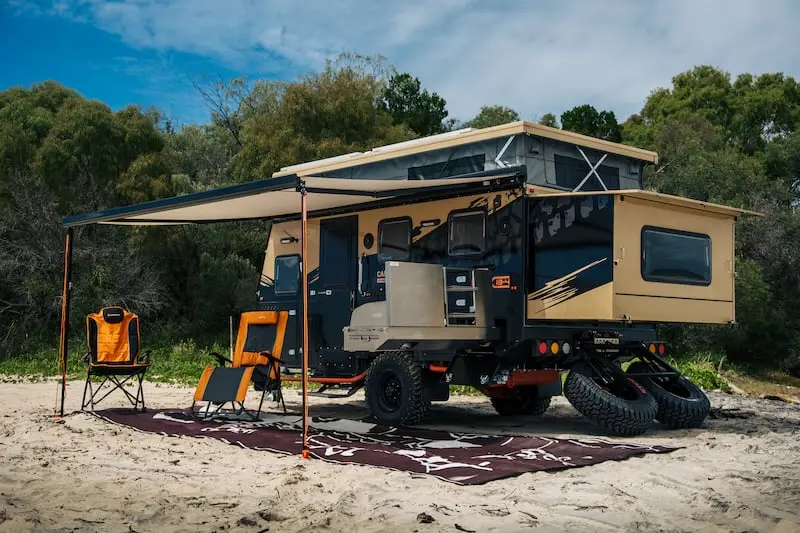

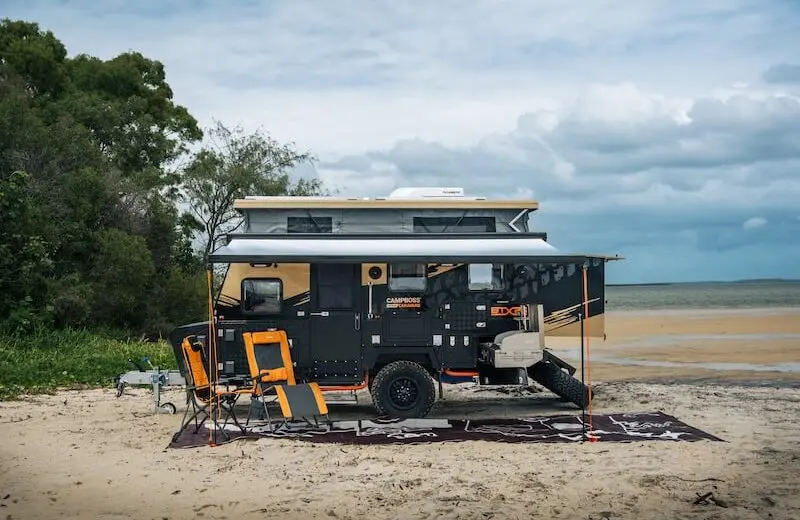

Built for outdoor living, the BTX13-4 has an Electric Awning that can be fully enclosed (Annexe not supplied as standard). “Cookin’” outdoors is a pleasure with a slide-out Stainless Steel Kitchen featuring four Gas Burners, Sink, and Storage Drawers—plus a separate slide-out Fridge Tray to keep the food fresh and the beverages cold!
Off-grid power

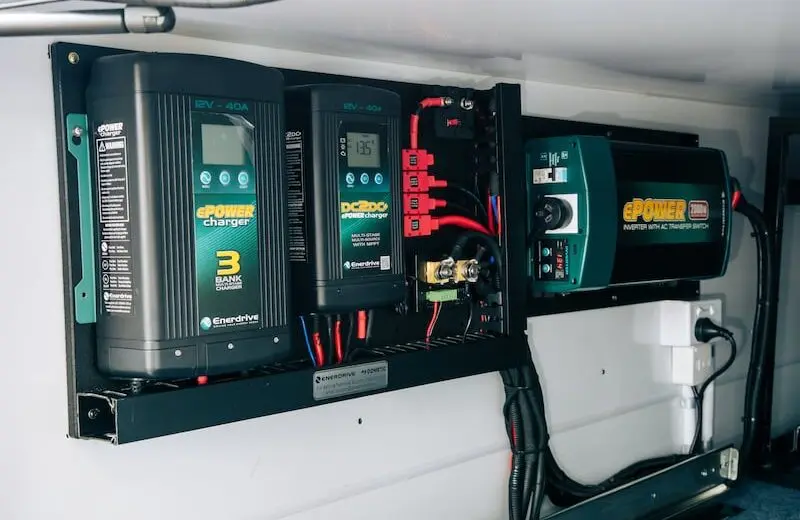

When your adventure takes you off-grid, an Enerdrive Esystem takes care of running everything, connecting the 240V/40A AC/DC Charger, the 40A DC/DC Charger, two Enerdrive B-Tec 200AH/12V Lifepo4 BT Gen2 Batteries, an Enerdrive 2000W Inverter, and 450W of Solar Panels on the roof.
